Few-shot Multispectral Segmentation with
Representations derived by Reinforcement Learning

Abstract

The task of segmentation of multispectral images, which are images with numerous channels or bands, each capturing a specific range of wavelengths of electromagnetic radiation, has been previously explored in contexts with large amounts of labeled data. However, these models tend not to generalize well to datasets of smaller size. In this paper, we propose a novel approach for improving few-shot segmentation performance on multispectral images using reinforcement learning to generate representations. These representations are generated as mathematical expressions between channels and are tailored to the specific class being segmented. Our methodology involves training an agent to identify the most informative expressions using a small dataset, which can include as few as a single labeled sample, updating the dataset using these expressions, and then using the updated dataset to perform segmentation. Due to the limited length of the expressions, the model receives useful representations without any added risk of overfitting. We evaluate the effectiveness of our approach on samples of several multispectral datasets and demonstrate its effectiveness in boosting the performance of segmentation algorithms in few-shot contexts. The code is available at https://github.com/dilithjay/IndexRLSeg.

Introduction

Multispectral images (MSIs) are extensively used in diverse applications such as environmental monitoring, crop analysis, and tumor detection. Generally, each channel of a multispectral image capture unique ranges of wavelengths of light (similar to how RGB images capture red, green, and blue light). However, collecting large-scale annotated MSI datasets is expensive and time-consuming. This limits the applicability of deep learning-based segmentation methods in real-world settings. In this paper, we explore the few-shot setting where only a handful of labeled samples are available, and present IndexRL — a method that learns mathematical expressions using reinforcement learning to combine MSI bands effectively for segmentation. These mathematical expressions (a.k.a. spectral indices) can be interpreted as a form of feature engineering, where the agent learns to create new features from existing ones. The key contributions of our work are:

• We propose a novel application of reinforcement learning for discovering spectral indices that improve few-shot segmentation performance in multispectral images.
• We address the challenging task of few-shot multispectral segmentation which, to the best of our knowledge, has not been previously explored in the literature in a general context.
• We demonstrate the effectiveness of our proposed approach on several datasets by comparing the performance against several baseline models.

Methodology

The proposed methodology consisting of four main components: (1) Index Generator: Uses the train set (image-mask pairs) to generate an expression. (2) Index Evaluator: Uses the generated expression and the original images to create the evaluated indices. (3) Dataset Updater: Uses the evaluated indices to update the original images. (4) Segmentation Trainer: Trains a segmentation model using the updated images. We may interpret this process as follows. The first component identifies the best augmentation for the data. The second component executes the augmentation on each input image to create its respective single-channel augmented image. The third component combines each augmented channel with its respective original input image. In the sections that follow, we discuss the first three components. The fourth component, the segmentation trainer, can be any multispectral segmentation approach.

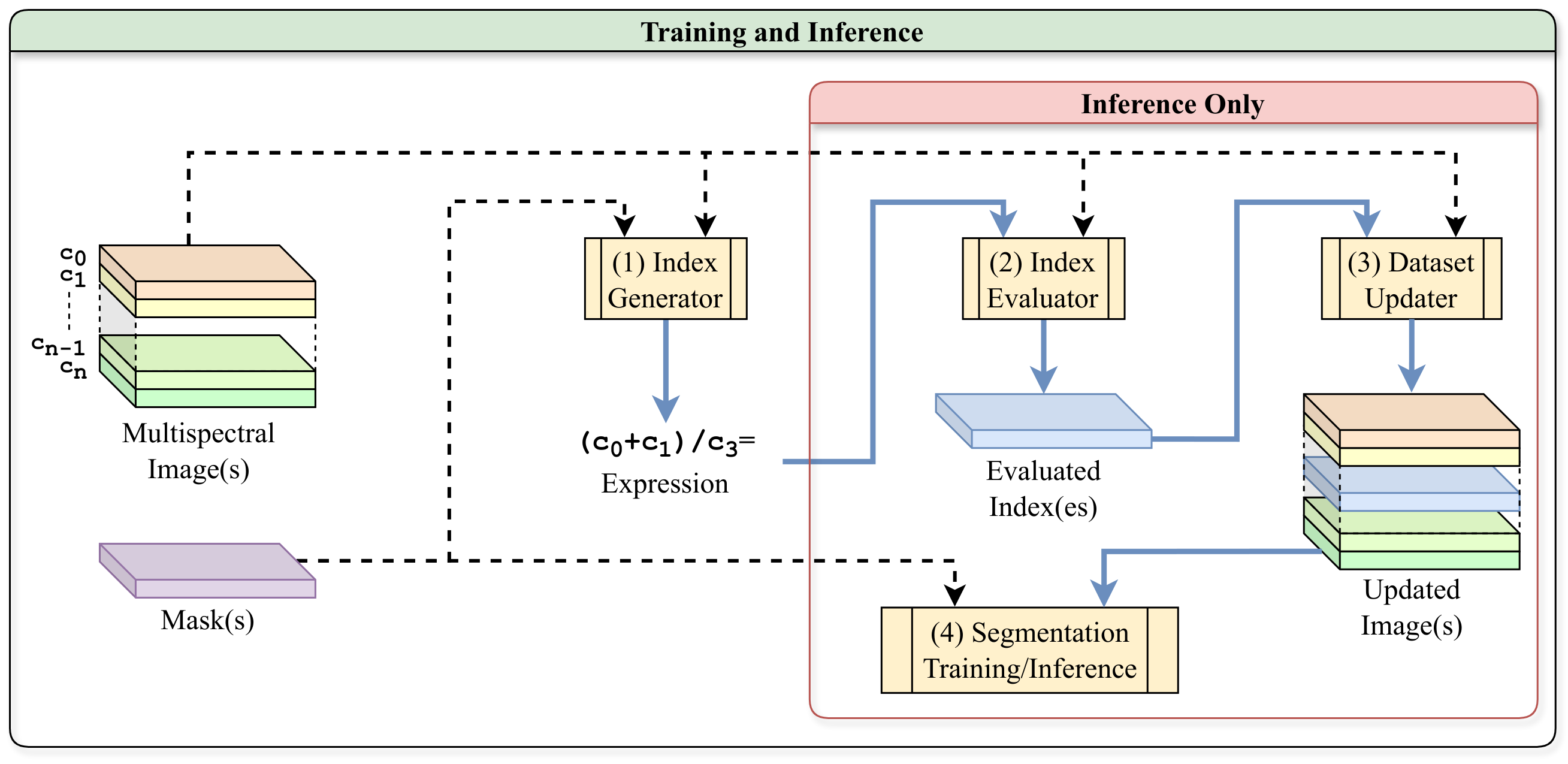

Figure 1: The proposed methodology and its four main components. (1) Index Generator (2) Index Evaluator (3) Dataset Updater (4) Segmentation Trainer.

Experiments and Results

We explore the performance of the proposed approach across several multispectral datasets, MFNet [14], Sentinel-2 Cloud Mask Catalogue [12], Landslide4Sense [13], and RIT-18 [18]. For MFNet and RIT-18, which are multiclass segmentation datasets, we evaluate our approach on selected classes (car, person, and bike on MFNet; grass and sand on RIT-18).

As per Table 1, the proposed method results in a significant improvement in UNet. However, it can be observed that this advantage decreases slightly with increasing model size. We hypothesize that bigger models depend relatively less on the input representation.

Table 1: The IoU scores of the baseline model against that of the best dataset updating mode for each dataset class when trained on each model.

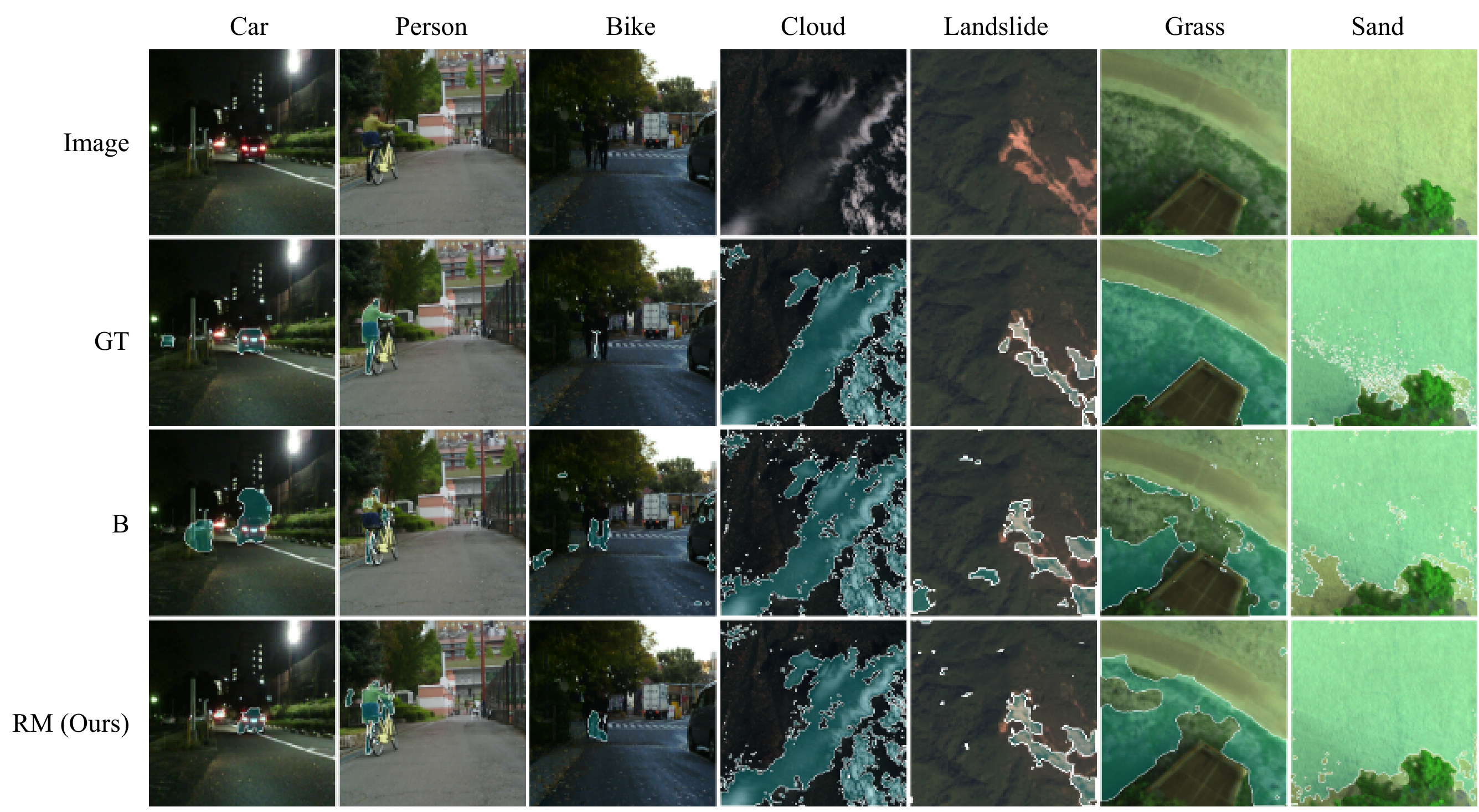

Figure 2: Qualitative comparison of segmentation results
